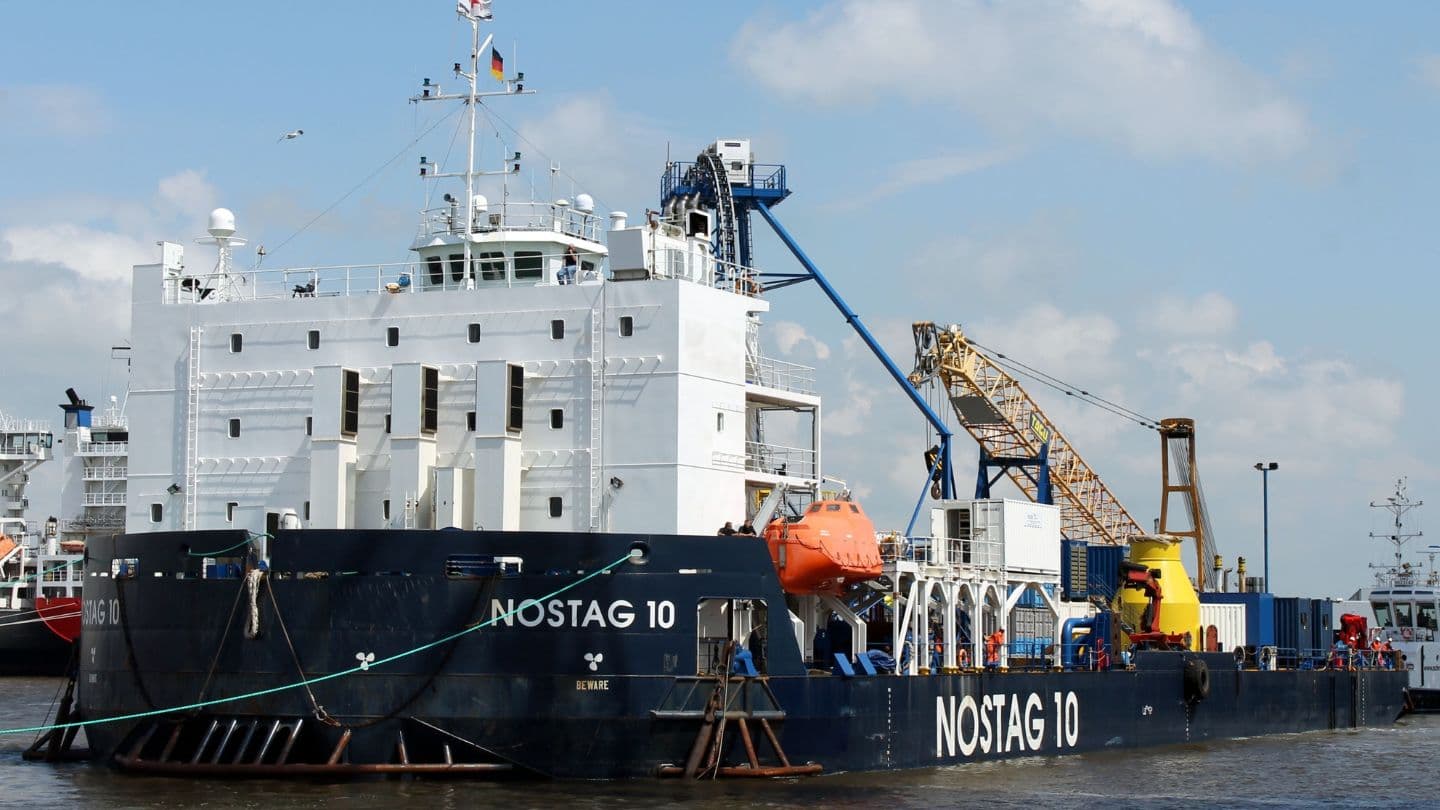

NOSTAG 10
The cable barge NOSTAG 10 is a vessel built in 2008, primarily designed for cable laying and repair operations for shallow water
General:
- Specification:: Sea Barge with Accommodation DNV-GL 100 AB S Barge (Equipped with Rudder Propellers for Maneuvering Assistance only, Ai-MC)
- Vessel: type: Cable Laying and Restoration Barge
- Flag:: Indonesia
- Authority:: Jakarta
- Home Port:: Tanjung Priok Jakarta
- Year of Construction:: 2008
Principle Dimension and Capacity:
- Length overall:: Approx. 91.5 m
- Moulded Depth:: 5.5 m
- Moulded Width:: 27.5 m
- Fresh Water Tank Capacity:: 455 m³
- Ballast System Tank Capacity:: 7362 m³
- Refrigerator/Freezer:: x2 20 ft Container
- Maximum Draught Approx:: 3.1 m
- Minimum Draught Approx:: 1.2 m
- Fuel Oil Capacity:: 349 m³
- Sewage Treatment Plant:: 1
- Gross Tonnage:: 4121 T
- Net Tonnage:: 1264 T
Winches/Anchors:
- 5-Point Mooring System:
- Pulling Winch:: Karmoy Winch (Pull 11 layer 60 ton, Brake 1st layer 100 ton)
- 4 Point Mooring System:
- 4 x H-500 kN (DMT Worldwide)
- Towing Wire:
- 1 x 2500 m Steel Wire
- Anchor Wires:
- 4 x 1000 m Steel Wires, Dia. 56 mm
- Anchors:
- 5 x High Holding Power Anchors, 5 ton, Flipper Delta
